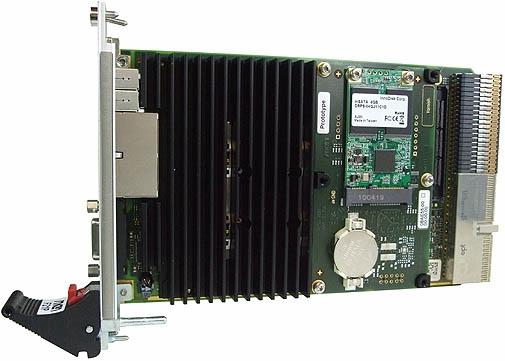

Intel® Core™、4th Generation搭載
3U CompactPCI Plus IOボード
0〜60℃まで動作温度保証
動作温度拡張版あり -20～60℃（On Request)
Celeron® 2002Eの場合、-40〜85℃動作温度保証
Linux、Windows、VxWorksをサポート
| F23P | Specification |
|---|---|
| CPU | - Intel® Core™ i7 - Intel® Core™ i5 - Intel® Core™ i3 - Intel® Celeron |
| Memory | ・System memory -Soldered DDR3, ECC support -4 GB, 8 GB, or 16 GB ・Boot Flash -16MB |
| Mass Storage | • The following mass storage devices can be assembled: - microSD™ card - mSATA disk |
| IF | ■Front • Video - One VGA connector - Additional interfaces are available via a side card - The front channel can optionally be led to the backplane • USB - Two Series A connectors, USB 2.0 (480 Mbit/s) • Ethernet - Two RJ45 connectors, 1000BASE-T (1 Gbit/s), or - One RJ45 connector, 1000BASE-T (1 Gbit/s), or - One 9-pin D-Sub connector, two 100BASE-T (100 Mbit/s), or - Two M12 connectors on 8 HP, two 1000BASE-T (1000 Mbit/s) - One front channel can optionally be led to the backplane - Two link and activity LEDs per channel • Front-panel LED for board status • Reset button ■Rear • Compatible with PICMG 2.30 CompactPCI® PlusIO - 1PCI33/4PCIE5/4SATA6/4USB2/1ETH1G, or - 1PCI33/4PCIE5/4SATA6/4USB2/2ETH1G • SATA - Four channels, SATA Revision 3.x (6 Gbit/s), RAID level 0/1/5/10 support • USB - Four channels, USB 2.0 (480 Mbit/s) • Ethernet - One channel, 1000BASE-T (1 Gbit/s), or - Two channels, 1000BASE-T (1 Gbit/s) - One front channel can optionally be led to the backplane • PCI Express - Four x1 links (500 MB/s per link), PCIe® 2.x (5 Gbit/s per lane) |
| Environmental Specifications | • Temperature range (operation) - -40°C to +85°C (model 02F023P00) - 0°C to +60°C (model 02F023P01) - Airflow 1.5 m/s - Depends on system configuration (CPU, hard disk, heat sink...) • Temperature range (storage): -40°C to +85°C • Cooling concept - Air-cooled - Conduction-cooled in MEN CCA frame • Relative humidity (operation): max. 95% non-condensing • Relative humidity (storage): max. 95% non-condensing • Altitude: -300 m to +2000 m • Shock: 50 m/s², 30 ms • Vibration (Function): 1 m/s², 5 Hz to 150 Hz • Vibration (Lifetime): 7.9 m/s², 5 Hz to 150 Hz |
| EMC | • EN 55022 (radio disturbance) • IEC 61000-4-2 (ESD) • IEC 61000-4-3 (electromagnetic field immunity) • IEC 61000-4-4 (burst) • IEC 61000-4-5 (surge) • IEC 61000-4-6 (conducted disturbances) |
| BIOS | InsydeH2O™ UEFI Framework |
| Software Support | • Note that 64-bit hardware technology can be used in an optimal way with 64-bit operating system support • Windows • Linux • VxWorks® |
